Description

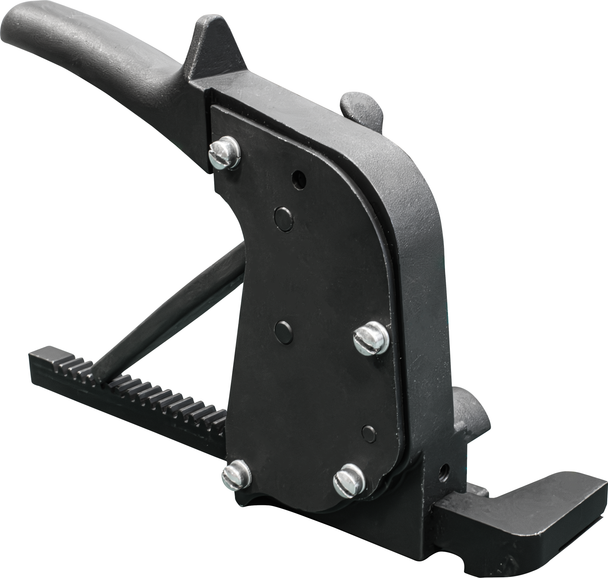

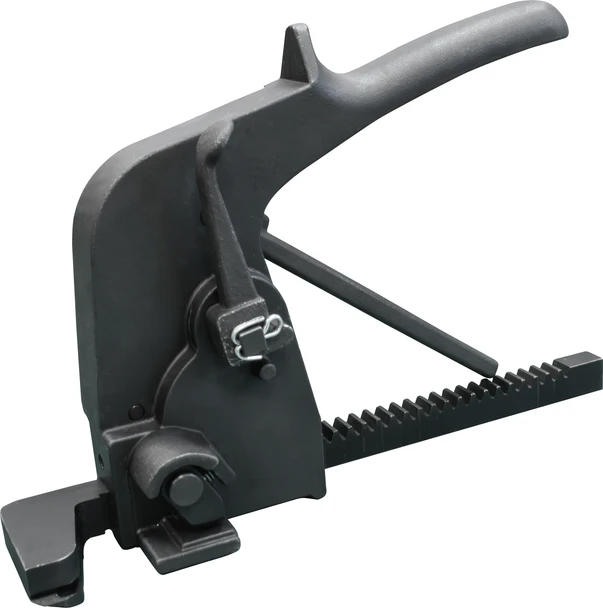

REGULAR DUTY PUSHER BAR TENSIONER
The RSA-595 is a regular duty, pusher bar tensioner for round or irregular surfaces. With an extremely small footprint, this tool is perfect for jobs where there isn't much work area, like hanging HVAC or Air Ducts. Commonly referred to as the "Insulation tool" or "Insulators tool." Uses a gripper to hold the banding tight while the body rides the pusher bar to achieve tension.
Strapping Dimension:
W: 3/8" - 3/4" (10mm to 19mm)
G: .015" to .023" (3.8mm to .58mm)
Weight:
3 lbs
Tension:
Limited tension capabilty, tool must be reracked to achieve higher tension. However, you cannot wear parts out by overtensioning like the a feedwheel tool
Speed:
N/A
Average seal strength:
dependent on seal/sealer used
W: 3/8" - 3/4" (10mm to 19mm)
G: .015" to .023" (3.8mm to .58mm)
Weight:
3 lbs
Tension:
Limited tension capabilty, tool must be reracked to achieve higher tension. However, you cannot wear parts out by overtensioning like the a feedwheel tool
Speed:
N/A
Average seal strength:
dependent on seal/sealer used
Seal and Joint type:
Pusher
Single Notch
Similar Tools:
Gerrard 1902-D
MIP1800
Acme B2A0
Additional Information
Operation: |
Manual |
For Use With: |
Steel |
Strap Width: |
1/2" |
Strap Width: |
5/8" |
Strap Width: |
3/4" |
